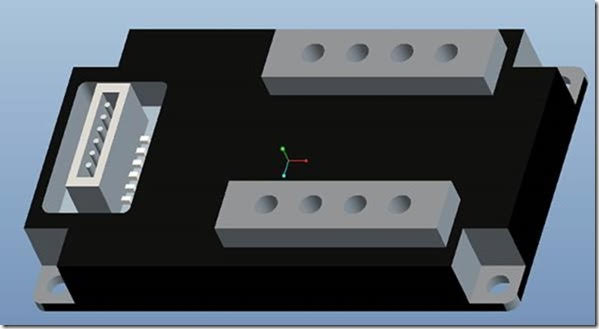

Bi-Directional Semiconductor Solid State Relay
SSR-60V300A
The new compact & cost-effective bi-directional pure type Solid State.
Relay was designed with the ultra-low ON Resistance MOSFET for high current operation.
The SSR combines input to output isolated, support bi-directional load current, high inrush current, high switch life time functions, can be used for 48V micro-hygrid start/stop system, Battert energy storage system, UPS…
Product Highlights:
- Up to 250ADC continue current
- 70mm×60mm×18mm ultra-compact design for high power density
- ﹥100,000 full power switching lifetime
- Bi-directional current type, can be used for DC or AC application
- Without traditional mechanical switch bounce
- 12VDC input supply, input signal can be used for PWM control
- Up to 2500Vrms safe isolation voltage for to input to output, 1500Vms for input or base plate
- Short propagation delay time
- Wide operation temperature range:-40℃～85℃
Targert Applications:
- Micro-Hybrid Vehicle →Photovoltaic
- High Frequency Power Supply →Energy Storage Systems
- Battery Fomation →Battery Protection
DATASHEET
SSR-60V300A
